Roll Out Sheets Rack
——
Vertical

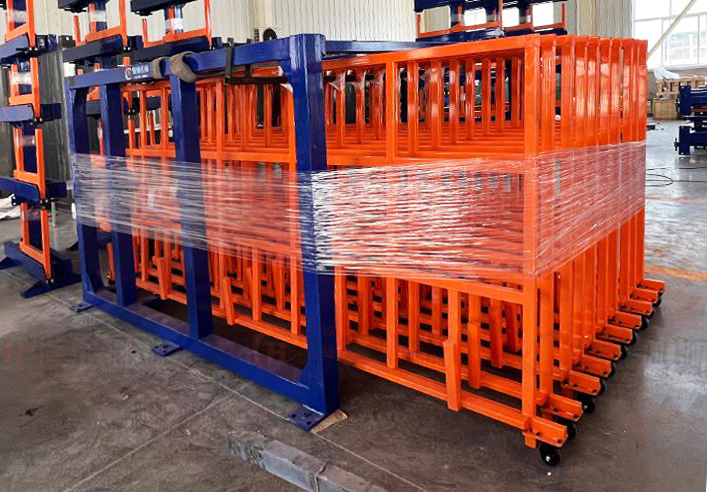

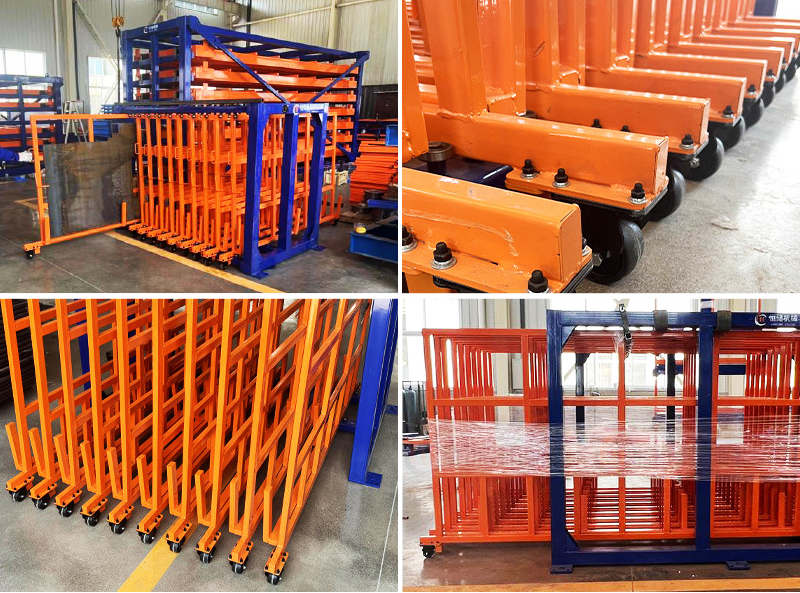

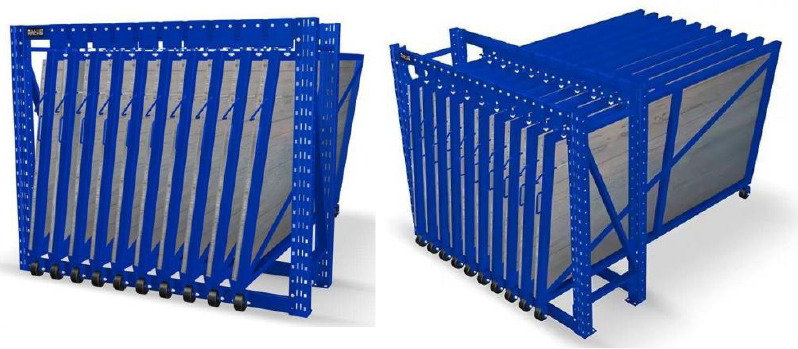

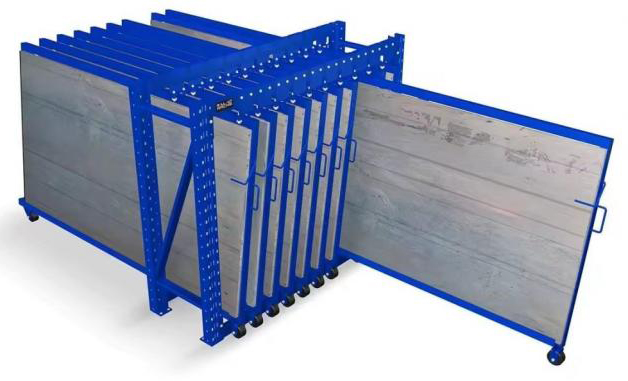

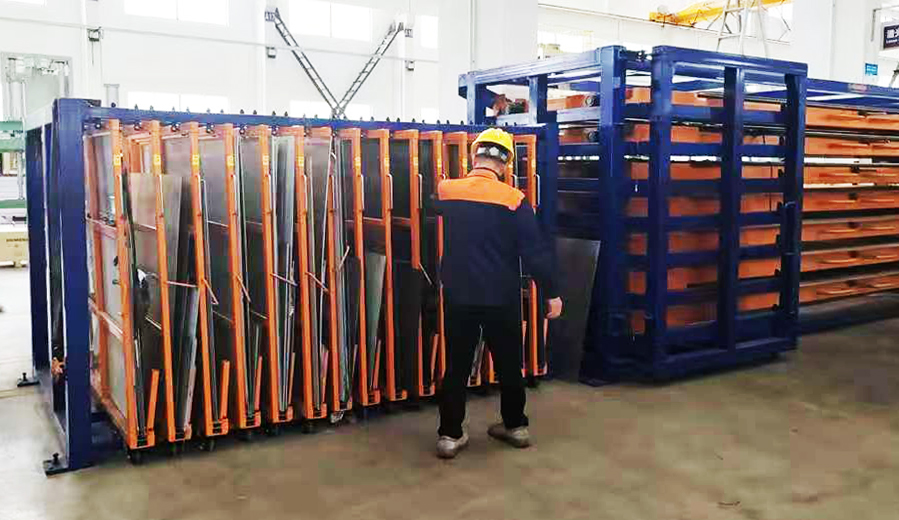

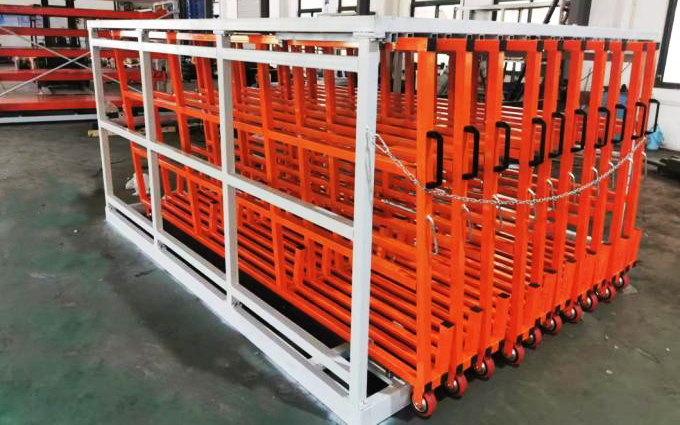

The vertical plate shelf adopts the drawer structure design principle.It is mainly composed of two parts, the main frame and the drawer.Each drawer has a space-saving design,The plates are stored upright in a drawer,There are mobile casters at the bottom of each floor.You can easily pull it out,Save manpower, improve efficiency, and make access faster and easier.
1.Sheets will be quick overview and selected easily
2.Roll out sliding units can be pulled out 100%.
3.Loading capacity is no more than 400kgs per roll out unit
4.Single people can be operated easily ,so save time and labor.
5.3 degree slant to prevent slipping sheets and protect valuable metal material
6.Save space and make workshop more clean and orderly, also keep worker safe.
7.Vertical rack can be designed"front-back"and "left-right"move style
Roll Out Sheets Rack · Warehouse Storage Rack · Made In China
| Vertical Roll out Sheet Metal Rack Parameter |
| Item | Standard unit for Reference | Customized |
| Storage Sheet Size | 2440*1220mm | 3000*1500mm | Customized |
| Loading per slot | 700kgs | 500kgs | less 1tons per slot |
| Number of Drawer | 10 | 8 | 2-10 pcs available |
| Distance between two layers | 150mm | 180mm | Customized |
| Operation System | Mechanical | Mechanical | Mechanical |
| Color of Rack | Blue/white | Blue/orange | Customized |
Features
—
Proper selection and installation of a roll-out sheet rack can greatly improve organization, accessibility, and efficiency in sheet material storage and handling.
1. Sheets will be quick overview and selected easily
2. Roll out sliding units can be pulled out 100%.
3. Loading capacity is 200-1500kgs per roll out unit
4. Single people can operate easily ,so save time and labor.
5. 3 degree slant to prevent slipping sheets and protect valuable metal material
6. Save space and make workshop more clean and orderly, also keep worker safe.
7. Vertical rack can be designed"front-back"and "left-right"move style
8. The Vertical Sheet Rack is small and compact, can be placed close to the operating equipment.
9. Each sheet is available quickly, easily, and safely.
10. Each frame section holds up to 15 roll out mounts.
11. Rapid access to sheets makes for reduced operating costs.
Roll Out Sheets Rack · Warehouse Storage Rack · Made In China

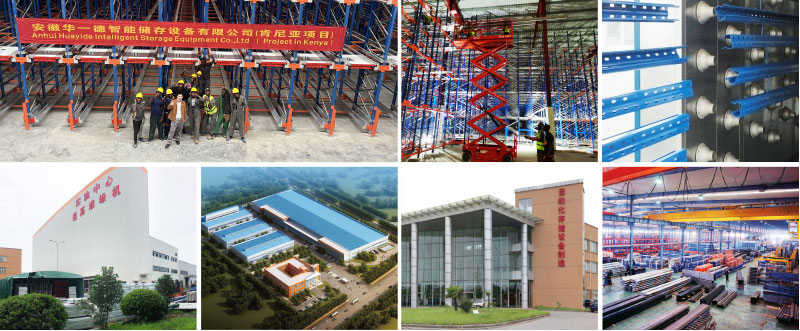

CASE
—

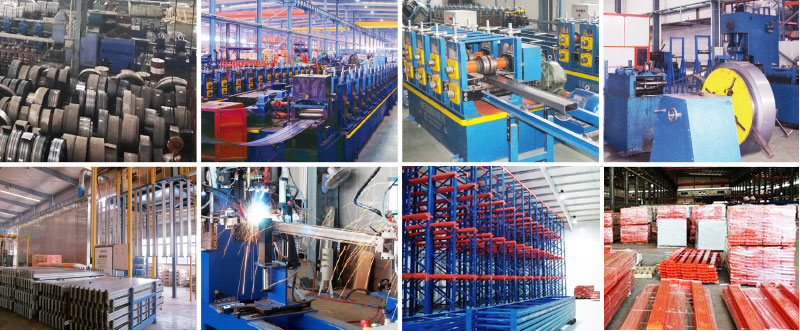

Ensure the quality of Huayide racking products
—
| 1 | The raw material of the shelf is customized from China's large steel group of high quality carbon steel, durable and strong, to ensure the quality of the product from the source. |
| 2 | The shelf welding adopts dioxygen protection welding, the welding joint has good cracking resistance, small welding deformation, beautiful forming, and does not need slag cleaning. |
| 3 | Each column and beam of the shelf are designed by professional personnel with professional technology and cut by professional equipment, so as to ensure the accurate size of the shelf. |
| 4 | Professional spray before treatment, oil removal, rust removal, phosphating, powder, and then in high temperature oven baking molding, wear-resistant, rust proof. |
